Modern intelligent switch-mode chargers are all of the following descriptions. Maintenance chargers, bulk chargers, boost chargers, equalising charger, float chargers. Multi-mode chargers. Don't be confused we can help. Start by finding out your batteries' Ah (Amp hour) capacity, divide that number by 10 and it will give you an idea of the Amps size/capacity charger you need to charge your batteries. We are factory-approved importers of CTEK, Victron, Traction, Sterling Power & Delta Q.
- Description
- Specifications
Compact, powerful 12V set and forget charging
Our smallest 12V charger
The XS 0.8 uses state of the art technology for charging smaller batteries on motorbikes, jet skis, ATVs and lawnmowers.

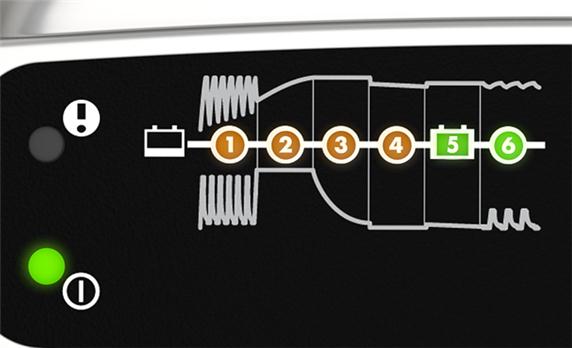

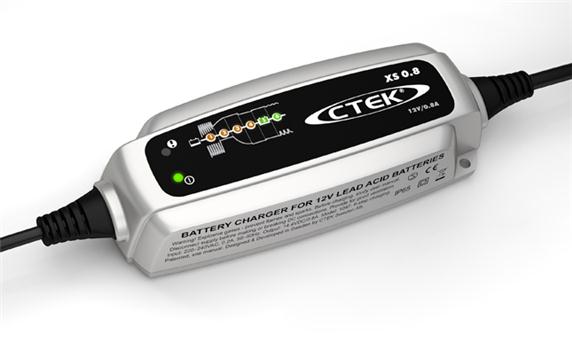

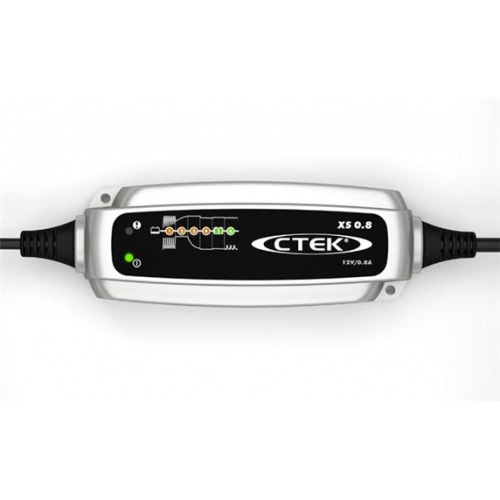

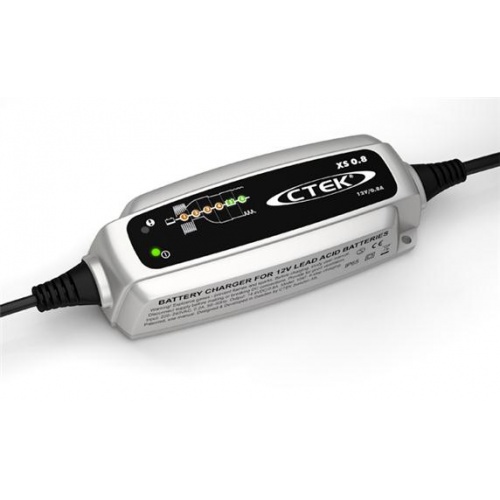

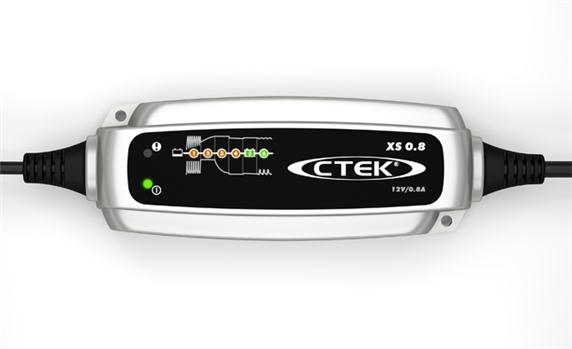

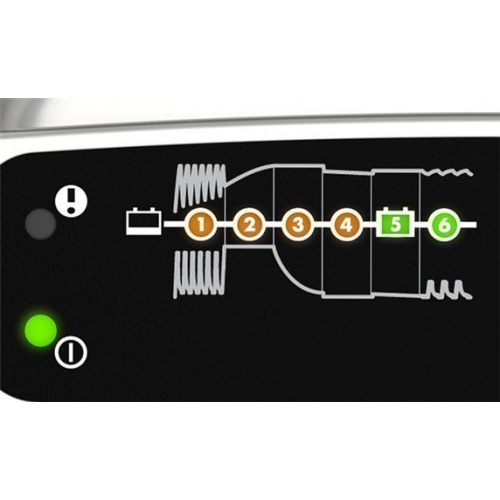

The XS 0.8 is CTEK’s smallest 12V charger and it’s suitable for charging smaller batteries as well as maintenance charging normal sized car batteries. The XS 0.8 is a compact, fully automatic 6 step charger that delivers 0.8A and charges 12V batteries from 1.2 to 32Ah and maintenance charging up to 80Ah. It’s simple to use and you can follow the whole charging process on the clear, easy to read display.
- Fully automatic ‘connect and forget’ 6 step charging
- Patented maintenance charging up to 100Ah for longer life batteries
- Charges 12V batteries from 1.2-32Ah
- Patented desulphation function
Technical information
Ambient temperature; -20˚C to +50˚C
Positioning; Portable
Warranty; 5 years
Input; 220–240VAC, 50–60Hz, 0.2A max
Output; 14.4V, 0.8A max
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, WET, MF, Ca/Ca, AGM, GEL
Battery capacity; 1.2–32Ah, maintenance charging up to 100Ah
Insulation class; IP65 (splash and dust proof)
Model Number; 57-825
Related products
When you are choosing your next car, you carefully consider what you will use it for most. Be that a Micro car or an SUV the engines might be of similar power but the purpose, its intended use is of great importance.
With your charger the usage/environment, for example, in a marine environment, you use a sealed IP44 or better (higher numbers are better) rating. Maybe its internally mounted but still in a sea spray zone so conformity coated board or potted components for a fully sealed solution are ideal. Consideration for what if the power supply doesn't de-rate in hot conditions (internally via thermal control or an external sensor to monitor the battery temperature). That the energy efficiency is a high percentage to reduce heat and chance of failure and if you travel internationally with your charger that it's rated for 110VAC input and 230VAC input (universal power supply). Accessory items are available if required and technical support is available from the place of purchase.
