Modern intelligent switch-mode chargers are all of the following descriptions. Maintenance chargers, bulk chargers, boost chargers, equalising charger, float chargers. Multi-mode chargers. Don't be confused we can help. Start by finding out your batteries' Ah (Amp hour) capacity, divide that number by 10 and it will give you an idea of the Amps size/capacity charger you need to charge your batteries. We are factory-approved importers of CTEK, Victron, Traction, Sterling Power & Delta Q.
- Description
- Specifications
Versatile and Powerful workshop charger
Powerful charging

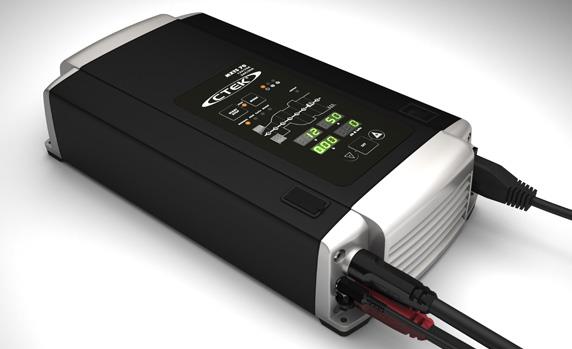

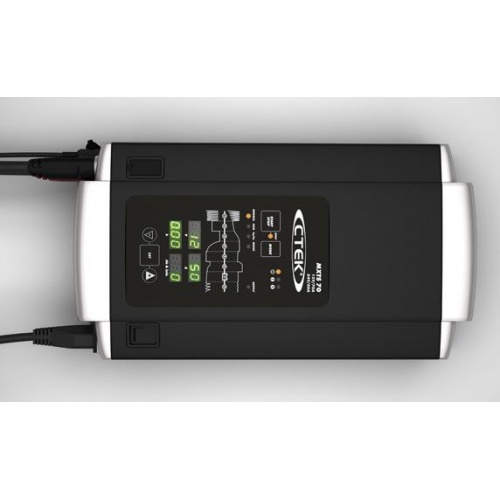

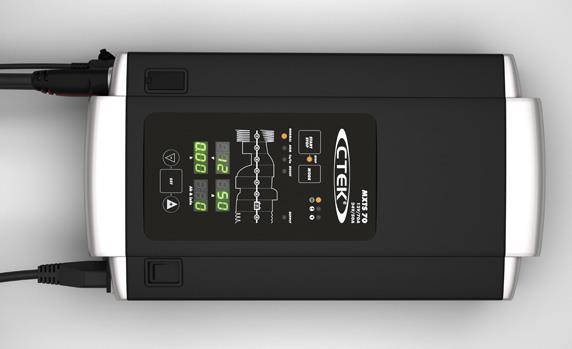

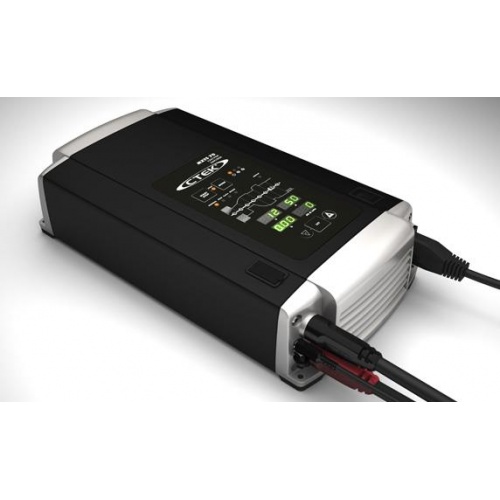

The MXTS 70/50 is a powerful, state of the art workshop charger developed specifically for all 12V and 24V lead-acid batteries, including AGM and EFB Stop/Start types.
The MXTS 70/50 is a fully automatic 8 step charger that delivers selectable 50A/12V or 50A/24V to batteries from 20-1,500Ah (for 12V) and 20-1,500Ah (for 24V), with 50A of constant power supply in 12V and 24V mode. In 12V mode, up to 70A of power is automatically available for temporary high loads. Features include battery diagnosis to establish whether your battery can receive and retain a charge, a Recond mode for reconditioning deeply discharged batteries and a built-in temperature sensor for optimised charging.
- Selectable power supply program for constant voltage output
- Patented float/pulse maintenance charging
- Recond function

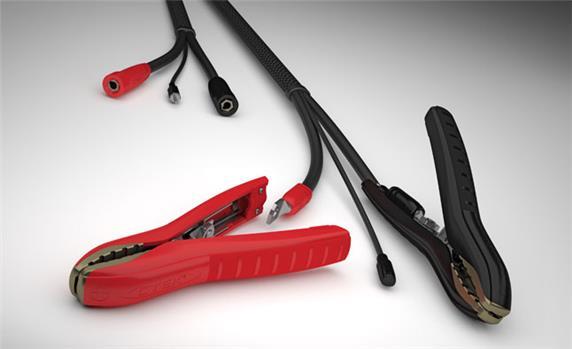

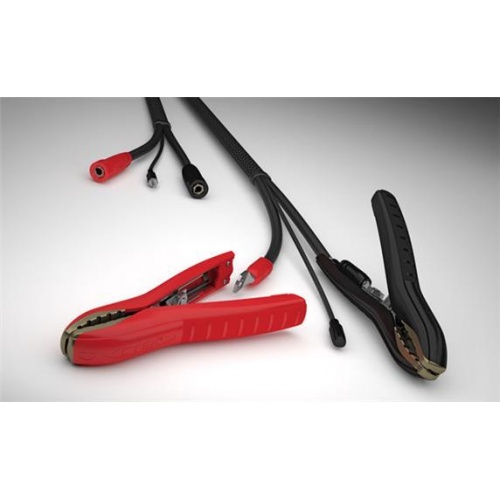

- Heavy duty 6m detachable charge cables and clamps
- LED displays for charging, charge voltage, current, charge time and energy indication
- Fully automatic 8 step charging
- Adjustable charge current control for batteries of all size
- Patented desulphation function
- Temperature sensor for temp. compensated charging
- Compatible with Pro accessories.
- Safe spark-free operation
- Reverse polarity protected
- Short circuit proof
Technical information
Ambient temperature; -20˚C to +50˚C (- 4°F to +122°F)
Positioning; Portable, Wall mounting (with the special kit)
Warranty; 2 years
Input; 220–240VAC, 47–64Hz, 7.2A max
Output; 14.4V, 50A max
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, 24V:, WET, MF, Ca/Ca, AGM, GEL
Battery capacity; 20–1500Ah
USB; The USB port is used for downloading charge program parameters from a PC by a technician or skilled user but not end user.
Insulation class; IP20
Ripple**; Less than 4%
Model Number; 40-015
When you are choosing your next car, you carefully consider what you will use it for most. Be that a Micro car or an SUV the engines might be of similar power but the purpose, its intended use is of great importance.
With your charger the usage/environment, for example, in a marine environment, you use a sealed IP44 or better (higher numbers are better) rating. Maybe its internally mounted but still in a sea spray zone so conformity coated board or potted components for a fully sealed solution are ideal. Consideration for what if the power supply doesn't de-rate in hot conditions (internally via thermal control or an external sensor to monitor the battery temperature). That the energy efficiency is a high percentage to reduce heat and chance of failure and if you travel internationally with your charger that it's rated for 110VAC input and 230VAC input (universal power supply). Accessory items are available if required and technical support is available from the place of purchase.
