Modern intelligent switch-mode chargers are all of the following descriptions. Maintenance chargers, bulk chargers, boost chargers, equalising charger, float chargers. Multi-mode chargers. Don't be confused we can help. Start by finding out your batteries' Ah (Amp hour) capacity, divide that number by 10 and it will give you an idea of the Amps size/capacity charger you need to charge your batteries. We are factory-approved importers of CTEK, Victron, Traction, Sterling Power & Delta Q.
- Description
- Specifications
The all in one 12V and 24V charging station
Fast, multi functional charging

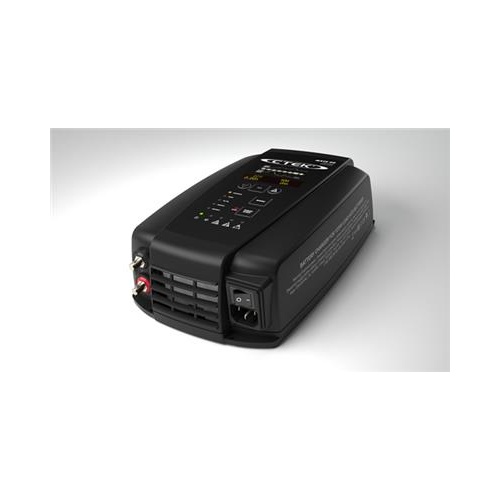

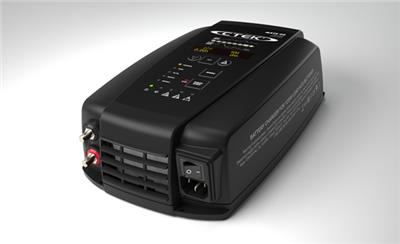

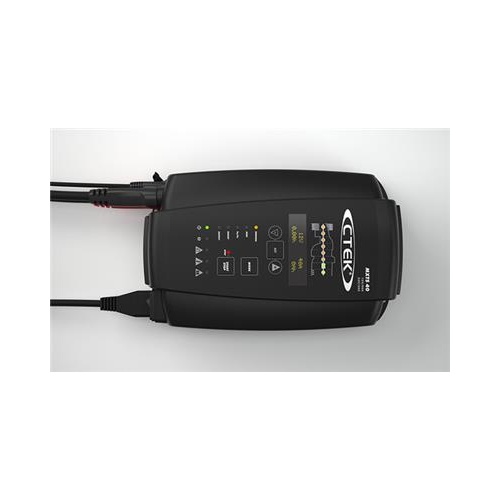

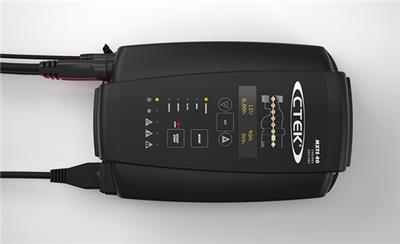

The MXTS 40 is the all in one battery charging, maintenance and support station that’s essential equipment for 12V and 24V vehicle workshops and showrooms. It’s easy to use and electronically safe, with rapid charging for all types of batteries.
The MXTS 40 has both 40A/12V and 20A/24V output and provides selectable constant voltage settings to avoid ECU damage due to voltage fluctuation during programming. As well as the 8 step charge progress display, the MXTS 40 also has an easy to read OLED display to give you clear readouts of key charge parameters, including current, voltage and amps charged. It has a Recond mode for reconditioning deeply discharged batteries and a temperature sensor for optimised charging regardless of weather conditions. The MXTS 40 has been designed to protect vehicle electronics and is housed in heavy duty polycarbonate for rough environments. It can be used with the optional Wall Hanger Pro and Trolley Pro for secure storage and maximum portability.
- Charges 12V batteries from 20-1200Ah and Charges 24V batteries from 10 – 600Ah
- Recond Mode for sulphated battery repair
- Temperature sensor to compensate for cold conditions

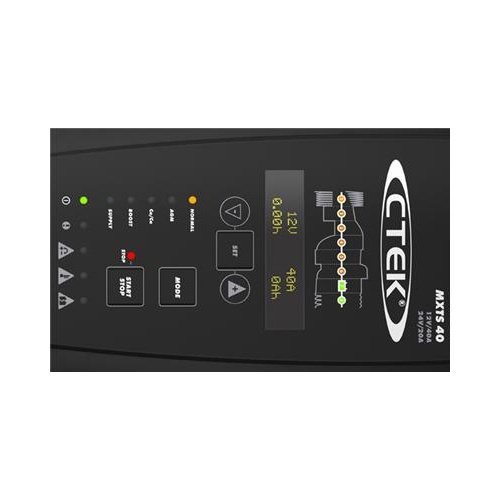

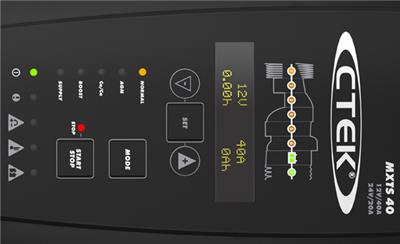

- Easy to read OLED display

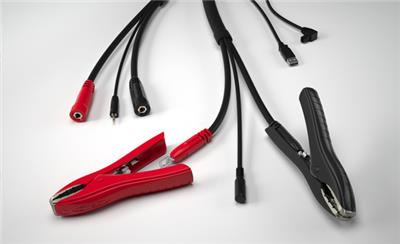

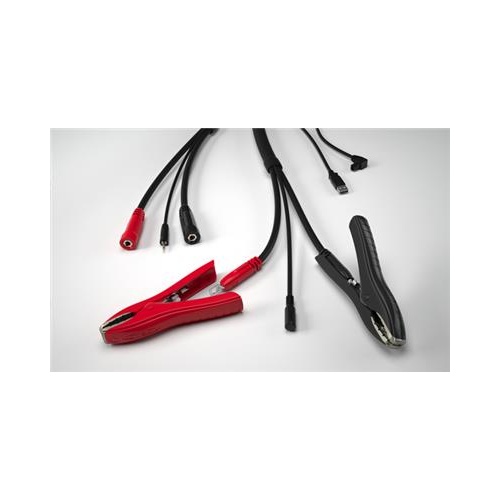

- Comes with heavy-duty clamps and high quality detachable 2.5m charge cables
- Electronically safe multi-step rapid charging
- Safe spark-free operation
- Reverse polarity protected
- Short circuit proof
Technical information
Ambient temperature; -20˚C to +50˚C (- 4°F to +122°F)
Positioning; Portable, Wall mounting (with the special kit)
Warranty; 2 years
Input; 220–240VAC, 50–60Hz, 3.0A max
Output; 14.4V, 40A/12V or 20A/24V
Start voltage; 2.0V
Back current drain*; Corresponding to less than 1Ah/month
Battery types; 12V:, 24V:, WET, MF, Ca/Ca, AGM, GEL
Battery capacity; 10–1200Ah
Insulation class; IP20
Ripple**; Less than 4%
Model Number; 40-100
Brand: CTEK
Related products
When you are choosing your next car, you carefully consider what you will use it for most. Be that a Micro car or an SUV the engines might be of similar power but the purpose, its intended use is of great importance.
With your charger the usage/environment, for example, in a marine environment, you use a sealed IP44 or better (higher numbers are better) rating. Maybe its internally mounted but still in a sea spray zone so conformity coated board or potted components for a fully sealed solution are ideal. Consideration for what if the power supply doesn't de-rate in hot conditions (internally via thermal control or an external sensor to monitor the battery temperature). That the energy efficiency is a high percentage to reduce heat and chance of failure and if you travel internationally with your charger that it's rated for 110VAC input and 230VAC input (universal power supply). Accessory items are available if required and technical support is available from the place of purchase.
